Z88 Hardware

All in One Pack

Z88 Starter Pack

All in One Pack

When Cambridge Computers were around they sold the PC and MAC All-In-One-Pack which included a
  • Z88 Computer,
  • 128K RAM,
  • Mains Adapter,
  • Carrying Case
  • and a set of batteries.
This one shown Summer Special included
  • 32K Eprom Pack and
  • Eraser
Batteries are no longer supplied due to posting and carriage restrictions but there is even more choice except for the NEW Z88s. These are no longer in stock.

Other useful items were

MAC or PC Link II which has now been replaced with Eazylink2.

Eazylink2 is supplied with OZ 4.7.1 on the Flash card. If you are getting one of these, please consider getting a Z88 to PC/Mac Serial Adapter or cable. You will already have the software on the Z88 and the PC or Mac software is a free download on the web. Further details are in Com links or call us for further information.

There are a number of items that are no longer available like the Z88, so items need to be bought separately now.

Welcome to Z88 Computers

Flash cards are used for file storage and/or as ROMs for applications and are like disks on a PC or Mac.
1M 512K
1M Flash EPROM   512K Flash EPROM with 512K RAM
1M of space for OZ 4.7.1
Applications and Files
or carry on using OZ 3.0 and Application 2012.
NOW fitted with a 'write' LED (See below).

This is also a 512K RAM Card, if removed, a HARD reset is required.

Can only be used with OZ 4.7.1

1M Flash with LED

Software Options

Standard OZ 3.0 Applications
Only available with
OZ 4.7.1

(not available on the 512K/512K Flash/RAM card)

Flash Card Old Software Information

Use in slot 1, this card gives you an expanded Z88 with
  • 512K RAM,
  • Applications
  • and a File Area.
Please Specify what software
is required when ordering

1M write LED upgrade
1M Flash LED

When the 1M Flash card was designed, the circuit was added for a 'write' LED to be fitted.
Unfortunately, the Cambridge Computer cases used, were not strong enough for them to be used.
This has all changed now in 2020 due to 3D printing.

Tony has designed a stronger case, allowing

1. the 38 pin connector to be more robust and
2. the LED to be fitted.

Existing users may take advantage of both these functions by sending their 1M Flash card(s) back to have this upgrade done (at extra cost) whilst new users can order and use them straight away at no extra cost.
1M LED card in Z88

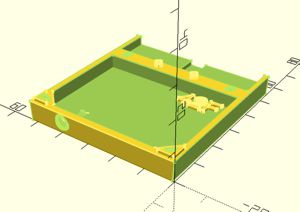

1M LED_drg

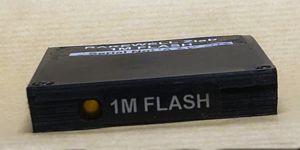

1M Flash Card with LED

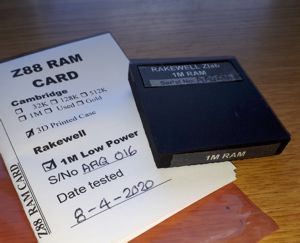

1M Low Power RAM Card


This uses a modern static RAM chip which gives the following advantages:-

  • 1M RAM
  • Low Power
  • Longer battery life.

This is a RAM pack.
If removed, a HARD reset is required

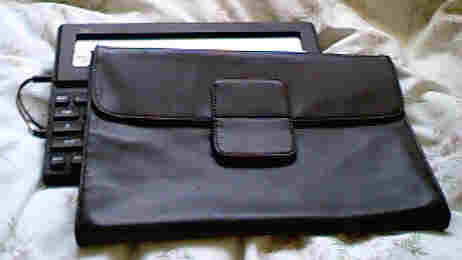

Z88 Carrying Case

[ image: Carrying Case]

Gives your Z88 a bit of padding and protection when you are out and about.

The Carrying Case with the Z88
Untitled Document

UpdatedUniversal Power Supplyavailable NOW

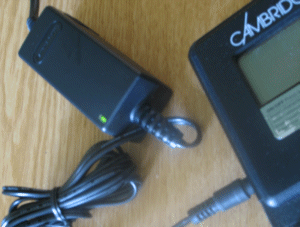

Universal Power Supply

When the Z88 came out the Mains adapters were built using large and heavy transformers, forcing users to either leave them at home or having two supplies, one for home and the other at work.

This power supply is the modern lightweight equivalent

  • Input voltage 90-264 VAC
  • Input frequency 47-63 Hz
  • Size 91mm x 36mm x 38mm (3.6" x 1.4" x 1.5")
Use it either in the USA, Europe or anywhere in the world.
Note: LOW STOCK - will be discontinued

Untitled Document

Untitled Document

Z88 Hardware
Description Price VAT Total
Cable - Printer (Parallel) £34.00 £6.80 £40.80
Cable - Printer (Serial) £5.00 £1.00 £6.00
NewZ88 Dummy EPROM Case
(Erase DIL EPROMS Using The Z88 ERASER)
NewCard Case
NewPCB (Blank)
£7.00 £1.40 £8.40
Carrying case NONE LEFT
Flash EPROM (1M) £45.83 £9.17 £55.00

NewFlash EPROM (1M) LED Upgrade




Flash EPROM (512K) / 512K RAM

£49.17 £9.83 £59.00
EPROM Card (32K)
EPROM Card (128K) £25.00 £5.00 £30.00
EPROM Card (256K) £49.17 £9.83 £59.00
Rubber Keyboard Mat
NO UK Version LEFT only foreign.
Keyboard Membrane
Mains Adapter (220v) £8.95 £1.79 £10.74
Modem 300/1200-software & cable


Modem Cable?
£10.00 £2.00 £12.00
Power Supply (90-264v)


RAM pack (1M) (low power)
RAM pack (1M) (CC)
£40.83 £8.17 £49.00
RAM pack (512K) £37.50 £7.50 £45.00
RAM pack (128K) £20.83 £4.17 £25.00
Cambridge Topper - Heavy Duty Version


Untitled Document

[Click here to send e-mail for real-time pricing]
